CUSTOMIZATION PROCESS How to choose your camera module?
01
Choose the camera sensor
Choose the camera sensor
(Resolution / Size / FOV etc.)
02
With or without LED
With or without LED
(If needed, choose LED Type)
03
With or without distal tips
With or without distal tips
(If needed, choose the material)
04
With or without channel

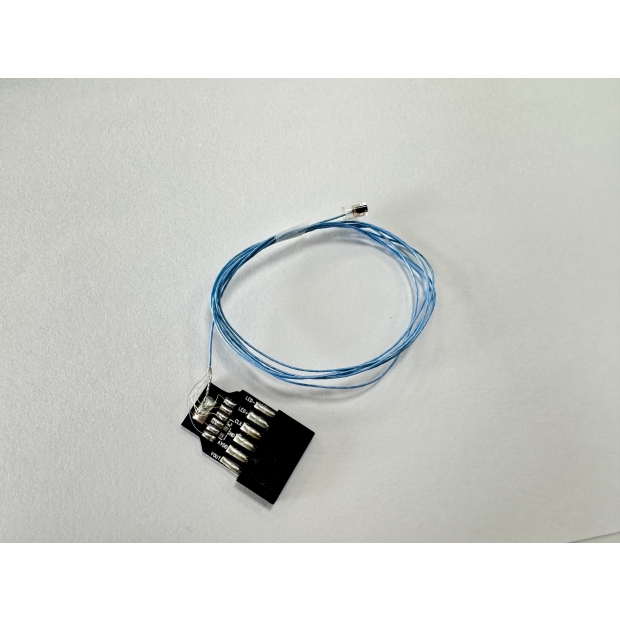

Camera Module List
| Product | Model | Resolution | Optical size | Pixel Size | Dimension | Output | Application | Overview |
|---|---|---|---|---|---|---|---|---|
 |
OM-161 | 400*400 | 1/18" | 1.74 μm | 1.05 x 1.05 mm | Analog | Ureteroscope Bronchoscope |
 |
|
OM-162 | 400*400 | 1/31" | 1.008μm | 0.65 x 0.65 mm | Analog | Ureteroscope Bronchoscope |
|
|
OM-166 | 400*400 | 1/18" | 1.75μm | 1.05 x 1.05 mm | Analog | Ureteroscope Bronchoscope |
|
|
OM-1310 | 700*700 | 1/9” | 1.4 μm | 1.1 x 1.1 mm | Analog | Laryngoscope Cystoscope |
|
|
OM-1312 | 1000*1000 | 1/18" | 1.008 μm | 2 x 2 mm | Analog | Ureteroscope Choledochoscope |
|
|
OM-1314 | 1280*720 | 1/9" | 1.4 μm | 2 x 2 mm | MIPI 1 Lane | Bronchoscope Laryngoscope Cystoscope |
|
|

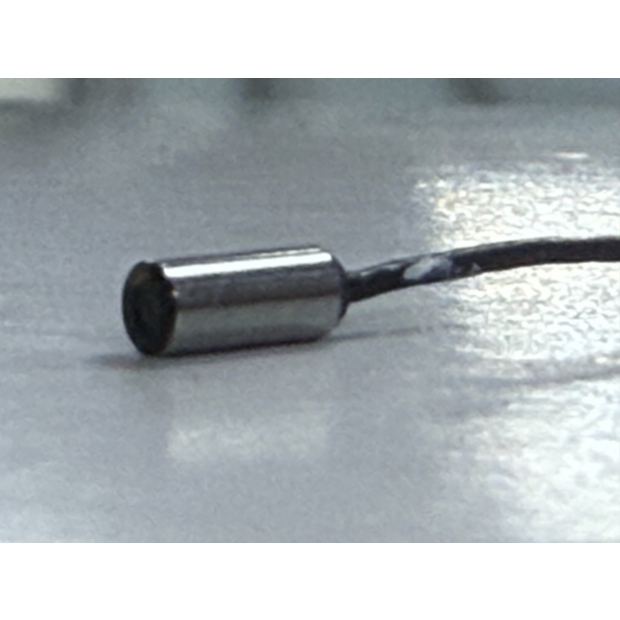

OM-2111 | 1920 *1080 | 1/7.25" | 1.116 μm | Ø 3.9 mm | Digital | Laparoscope | |

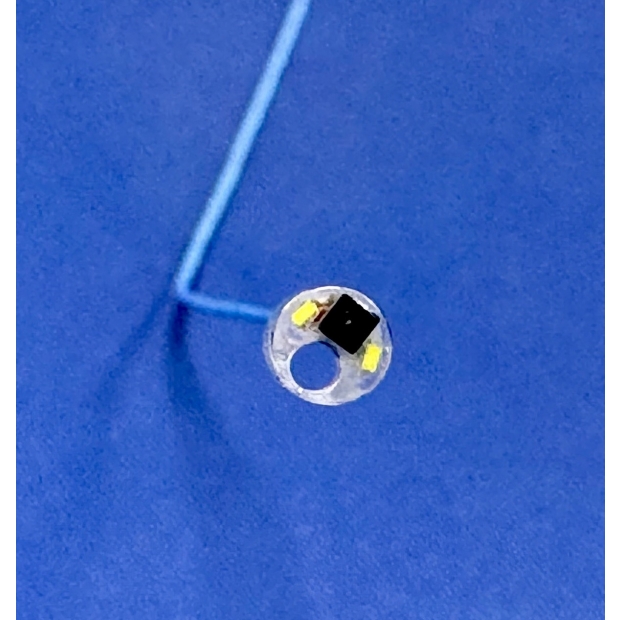

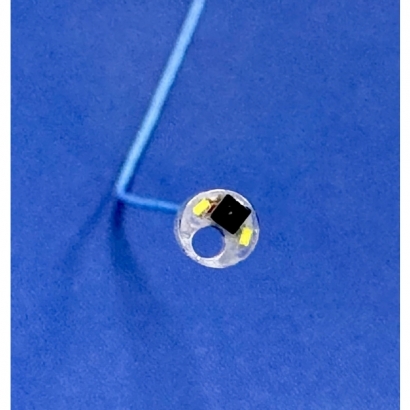

Camera Module with Working Channel
| Product | Model | Resolution | Distal Tip Dimension Outer and Working Channel |
LED | Cable Length | Front View of the Distal Tip | Application | Inquiry |
|---|---|---|---|---|---|---|---|---|
|
OM-161-T25-CH12 | 400*400 | OD: 25 mm CH: 1.2 mm |
2 pcs | 1 m |  |
Ureteroscope Bronchoscope |
 |
|
OM-161-T28-CH12 | 400*400 | OD: 28 mm CH: 1.2mm |
2 pcs | 1 m |  |
Ureteroscope Bronchoscope |
|
|
OM-165-T25-CH12 | 400*400 | OD: 25 mm CH: 1.2 mm |
2 pcs | 1 m | |
Ureteroscope Bronchoscope |
|
|
OM-1312-T25-CH12 | 1000*1000 | OD: 25 mm CH: 1.2 mm |
2 pcs | 1 mm | |
Ureteroscope Choledochoscope |
|
|
OM-1314-T38-CH20 | 1280*720 | OD: 28 mm CH: 2.0 mm |
4 pcs | 1 mm |  |
Bronchoscope Laryngoscope Cystoscope |
|
|
OM-1314-T50-CH28 | 1280*720 | OD: 50 mm CH: 2.8 mm |
4 pcs | 1 mm |  |
Bronchoscope Laryngoscope Cystoscope |
|
Camera Module without Working Channel
| Product | Model | Resolution | Distal Tip Dimension Outer and Working Channel |
LED | Cable Length | Front View of the Distal Tip | Application | Inquiry |
|---|---|---|---|---|---|---|---|---|
|
OM-161-T1111 | 400*400 | OD: 1.1*1.1 mm | 0 pcs | 1 m |  |
Ureteroscope Bronchoscope |
|
|
OM-161-T12 | 400*400 | OD: 1.2 mm | 2 pcs | 1 m |  |
Ureteroscope Bronchoscope |
|
|
OM-161-T18 | 400*400 | OD: 1.8 mm | 2 pcs | 1 m |  |
Ureteroscope Bronchoscope |
|
|
OM-1314-T31 | 1280*720 | OD: 3.1 mm | 4 pcs | 1 mm |  |
Bronchoscope Laryngoscope Cystoscope |
|
|
OM-2110-T45 | 1920 *1080 | OD: 4.5 mm | 6 pcs | 1 mm |  |
Laparoscope | |
